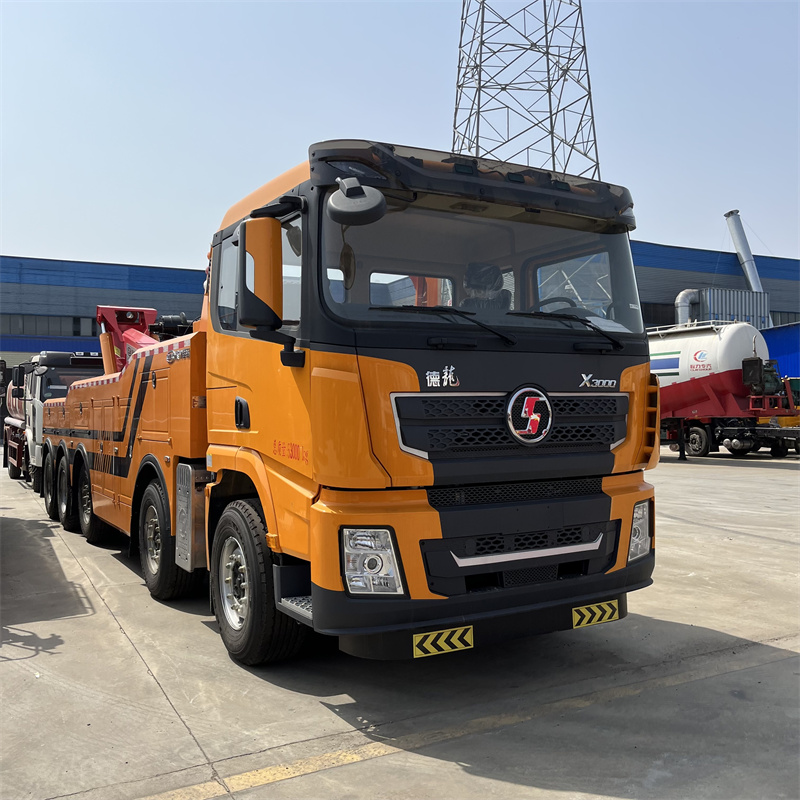

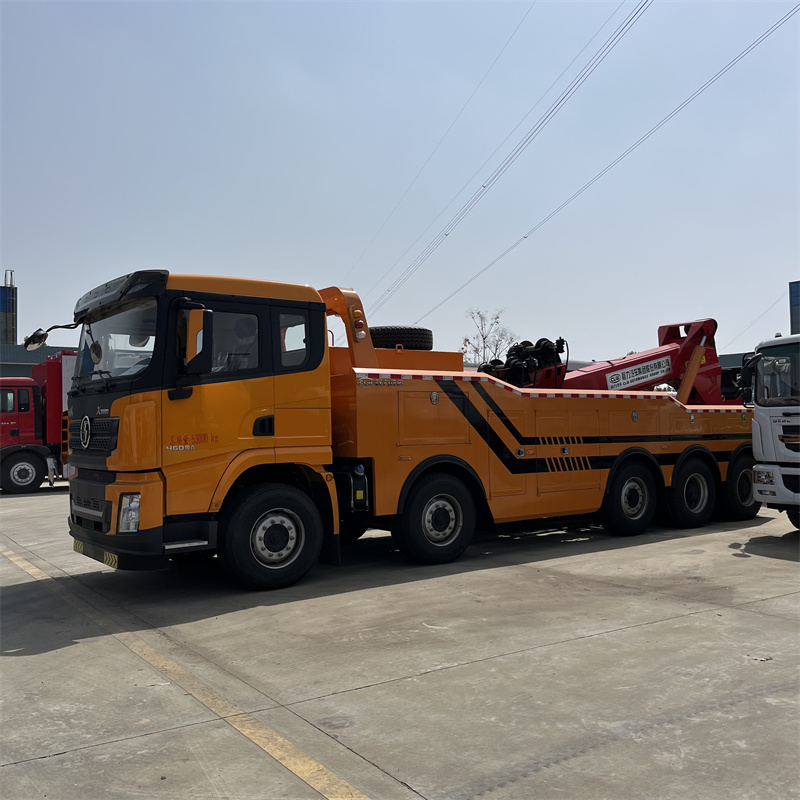

10X6 SHACMAN 40 TONS 50 TONS HEAVY WRECKER HEAVY DUTY INTEGRATED TOWING
Product Description
The heavy duty integrated series have different capacities from 30 tons to 50 tons.
The heavy duty integrated wrecker features a 66,000 lb. - 111,000 lb. 2- or 3-stage wrecker boom, corrosion, resistant body and optional 3- or 4-stage underlifts – all designed with strength and performance in mind.
The truck brand options also available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, etc.
With Euro 2, Euro 3, Euro 5, Euro 6 emission.
With RHD, LHD.
With 4x2, 4x4, 6x4, 6x6, 8x4, 8x8.
Other special requirements you want.
Main Features
1. 15 Tons / 33,200 lbs. - 25 Tons / 55,000 lbs. Planetary Winch, 2 Pcs. Total 30 Tons / 66,600 lbs - 50 Tons / 111,000 lbs.
2. 28 Tons / 62,200 lbs. Underlift Capacity, Tow Rate At Least 56 Tons / 124,000 lbs.
3. Optional Remote Control
4. Sides Tool Boxes
5. Optional Front Legs and Side Pullers
Truck Specs
| 10x6 Shacman Wrecker Truck |
| Overview |
| Name | 10x6 Shacman Wrecker Truck |
| Dimension (LxWxH) | 11950x2550x3950 (mm) |
| Total Mass | 42800Kg |
| Rated Payload | 25000Kg |
| Kerb Weight | 17800Kg |
| Passenger | 3 |
| The Parameters of Chassis | |
| Manufacture/Model | Shacman |
| Driving Type | 10*6 RHD/LHD |
| Wheel Base | 2100+3175+1400+1400 mm |
| Gearbox | 10JSD180+QH50, ten speed forward and two reverse, manual |
| Tyre | 12.00R20 |
| The Number of Tyre | 14+1(spare tyre) |
| Frame | 850x300(8+5+8) |
| Alexs | Front 9.5 tons and rear 16 tons, MAN |
| Oil Tank | 300L aluminum tank |
| The Parameters of Engine |
| Manufacturer/Model | WeiChai/WP10.380E22 |
| Rated Power | 380hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 9726ml |
| Emission Standard | Euro 2 |
| Cylinder | Straight/6/turbo charge/intercooling/watercooling/direct injection |
| Max. torque | 1600N.m |
| Velocity | 2200rpm |
Body Specs
| Heavy Duty Integrated Wrecker Body | | | No. | Item | Content | Details | Details | Details | | | 1 | Name | | 30 Tons Wrecker Body | 40 Tons Wrecker Body | 50 Tons Wrecker Body | | | 2 | Winches | | 2×15 Tons Main Winches | 2×20 Tons Main Winches | 2×25 Tons Main Winches | | | 3 | Under lift | Under lift | G70 material, 3-4 stage | | | 4 | Boom | Boom | G70 material, 2-3 stage, hexagon | | | 5 | Legs | Rear | Hydraulic rear supporting legs | | | 6 | Frame | LED Lights Frame, full size | | | | 7 | Toolbox | On Both Sides | Carbon steel Q345R, with stainless steel handles | | | 8 | Hook-Ups | Air and Electrical Hook-Ups | 12V or 24V | | | 9 | Control | Remote Wireless Control | Button remote control | | | | | Hand Manual Control | On Lift and Right Sides, English Indication | | | 10 | Hydraulic Parts | Hydraulic Pump | Double Pump | | | | | Hydraulic Hose | | | | | | Hydraulic Connector | | | | | | Valves | Italy | | | | | Cylinders | | | | 11 | Attachments | 5 Sets of Forks | 4 sets for axle, 1 set for suspension | | | | | U shape tyres holder | 1 set | | | | | Safety Chains | 2 pcs | | | 12 | Painting and Indication | Electrophoresis Painting | Tool Box EP painting, other normal painting | | | | | Surface Painting | Epoxy Resin | | | | | Indication | English Indication and Marks | | | | | Packaging | Boxes and under lift protected for the painting | | | Specifications | | | 1 | Underlift | Retracted Lifting Capacity | 25000 | 28000 | 28000 | | | | | Retracted Length | 1746 | 1746 | 1746 | | | | | Extended Lifting Capacity | 7310 | 7310 | 7310 | | | | | Extended Length | 3110 | 3410 | 3410 | | | | | Undelift Tilt | -10 | -10 | -10 | | | | | Towing Capacity | 50 | 56 | 56 | | | 2 | Boom | Retracted Lifting Capacity (45°) | 30 | 40 | 50 | | | | | Extended Lifting Capacity (45°) | 8 | 10 | 11.5 | | | | | Max. Lifting Tilt | 33 | 33 | 33 | | | | | Max. Lifting Height | 7022 | 7022 | 7022 | | | 3 | Main Winches | Quantity | 2 | 2 | 2 | | | | | Pulling Power | 15 | 20 | 25 | | | | | Type | Planetary | Planetary | Planetary | | | | | Steel Wire Length | 45 | 45 | 45 | | | | | Steel Wire Diameter | 18 | 26 | 28 | |
