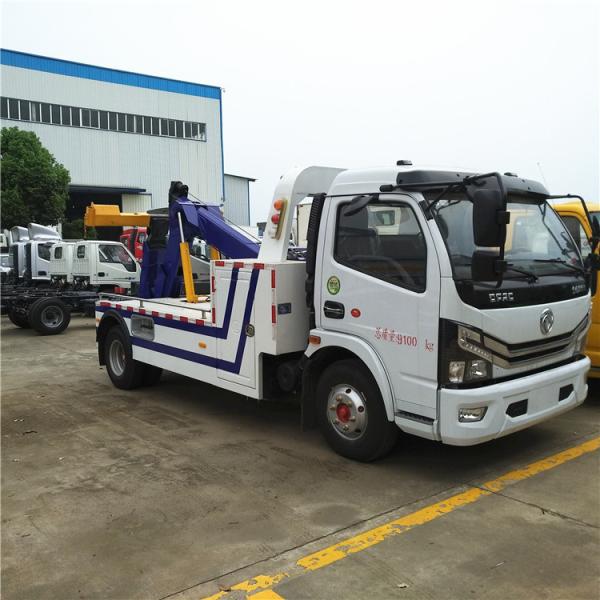

Euro 6 Dongfeng Underlift Recovery Truck 12 Tonne Recovery Truck

Brand Name : Dongfeng

Place of Origin : Hubei, China

MOQ : 1

Supply Ability : 5 unit/month

Delivery Time : 35 days

Packaging Details : Nude, covered with protection film

Product name : Integrated Wrecker Truck

Condition : New

Drive type : 4x2 driving

Main Winch : 6 tons, 1 pcs

Auxiliary Winch : Optional

Underlift : G70, 2 sections

Boom : G70, 2 sections

Remote Control : Optional

Warranty : 2 Year

Contact Now

6 TONS EURO 6 DONGFENG 12 TONS UNDERLIFT RECOVERY TRUCK LIFT AND BOOM TOW TRUCK WRECKER
Product Description

The light duty medium duty integrated series have different capacities from 3 tons to 10 tons.

The 6 ton Integrated wrecker body with a 13,500 lb. rated winch and underlift. A modern, modular steel body that is maximized for available storage and deck space. Optional aluminum body available.

The truck brand options also available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, etc.

With Euro 2, Euro 3, Euro 5, Euro 6 emission.

With RHD, LHD.

With 4x2, 4x4, 6x4, 6x6, 8x4, 8x8.

Other special requirements you want.

Main Features
1. 6 Tons / 13,500 lbs. Planetary Winch, 1 Pcs
2. 6 Tons / 13,500 lbs. Underlift Capacity, Tow Rate At Least 12 Tons / 26,600 lbs.
3. Optional Remote Control
4. Sides Tool Boxes
Truck Specs
6 Tons Integrated Wrecker Truck
Overview
Name 6 Tons Integrated Wrecker Truck
Dimension (LxWxH) 6450x2300x2400(mm)
Total Mass 9100Kg
Rated Payload 4000Kg
Kerb Weight 5900Kg
Passenger 3
The Parameters of Chassis 　
Manufacture/Model Dongfeng
Driving Type 4*2 left hand drive
Wheel Base 3800 mm
Gearbox Six speed forward and one reverse, manual
Tyre 7.50R16
The Number of Tyre 6+1(spare tyre)
Leaf Spring Number 8/10+7
AC, Power Window, Central Locking, etc. Included
The Parameters of Engine
Manufacturer/Model Yunnei/YCY24140-60
Rated Power 140hp
Fuel Type Diesel oil
Displacement/Capacity 2360ml
Emission Standard Euro 6
Cylinder In-line/4/turbo/intercooling/+EGR+DOC+DPF+SCR+ASC
Max. torque 400N.m
Velocity 2950rpm
Body Specs
6 Tons Wrecker Body
S.N. Item Unit Quantity Remarks
1 Boom Stage 2 　
2 Wheel Lift Stage 2 　
3 Boom Extension Cylinder pcs 1
4 Boom Lift Cylinder pcs 2
5 Wheel Lift Extension Cylinder pcs 1
6 Wheel Lift Tilt Cylinder pcs 1
7 Multi Way Valve pcs 1
8 Balance Valve pcs 1 For boom lift
9 Pump pcs 1
10 Winch pcs 1 6 tons
11 Hose set 1 　
12 Remote Control set 1 Optional, extra USD500　
13 Manual Control side 2 　
14 Toolbox side 2
15 Trolleys pcs 2

Large trolley is optional, aluminum trolley is

extra USD1000, steel trolley is extra USD800　
16 Wheel Grids pcs 2 Auto loader is optional, extra USD500
17 L Arms pcs 2
18 Forks pcs 2
19 Forks Holder pcs 2
20 Binding Strips pcs 4 　
21 Lights set 1
